Dimac Galaxy
MACHINE MODELS
F Film Only
P Pad & Film
T Tray and Film
CONTINUOUS SEPARATION SYSTEM
This system enables the separation of the desired configuration from the overall product flow. The unit uses “teeth” that get between the products from below according to the configuration required. The unit is controlled by servomotors that change the configuration automatically. Should the product type change, the separation teeth must be replaced with a bayonet system through a simple and quick procedure without the need for wrenches. An optional automatic format changing system is available.
FILM RE-ASCENT
The system is made up of a special plastic conveyor that enables the re-ascent of the film to the product that needs wrapping thanks to a slight vacuum in the unwrapping area.

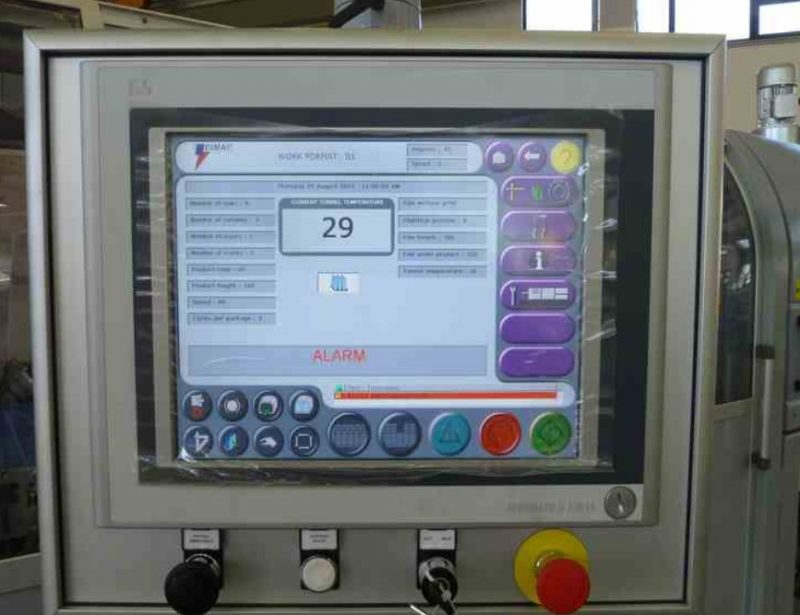

10″ TOUCH SCREEN DISPLAY
Color touch screen display fitted as standard on all DIMAC machines. It gives operators the possibility of managing all machine parameters and keeping all its functions under control.
HEAT SHRINK TUNNEL
Conveyor voltage is maintained constant by a counterweight in the final part of the tunnel. The tunnel is equipped with external regulation to optimize air flow according to the different configurations.
SPECIFICATIONS
| Performance | |
| Capacity/Speed (Packs Per Min) | Max 80ppm |
| Format Options | Film Only, Tray+Film, Pad+Film |
KEY FEATURES
Automatic Film Splicer Option
B&R PLC & HMI
Carton Magazine
Cut Film Conveyor
Double Film Roller
Easy Film (Film Rolls Positioned Outside From The Machine Frame
Elau Schneider PLC & HMI
Ergonomic Carton Magazine
AVAILABLE OPTIONS
| Air Conditioning (Control Panel) | Automatic Film Splicing |
| Can Labelling Orientation | Case Turner on Board |
| Film Cutter Extractible | Infeed Side Transfer Conveyor |
| Remote Servicing | Rockwell PLC & HMI |
| Servo Automatic Change Over | Stacker |
| Stain Less Steel Execution | UL or CSA Compliancy |
ADDITIONAL RESOURCES
DIMAC GALAXY SERIES (English & Italian) Brochure
